CBP-TRN1 Test & Trainer CalBench Package

New range of CalBench Packages launched – View here

The CBP-TRN1 CalBench can be used to demonstrate and practice pressure, process, and temperature instrumentation calibration. It is suitable as a teacher workstation that is easy to operate manually, but can also perform software driven calibration. Educate trainees on applications relating to commissioning, calibration and maintenance of the typical devices used for measurement in industrial systems.

The 8060+ module situates centrally in the console, providing source, simulation and measurement of process signals, HART communication and 24 V loop power. It features an integral multimeter, and a PC control centre with 12.1" touch screen display. Both manual control and EasyCal software driven calibration can be performed. EasyCal communicates with pressure modules and dry block calibrator.

For pressure, pneumatic and hydraulic calibration can be performed. A regulated pneumatic module with digital gauge is used for vacuum to 7 bar (100 psi). Then gauge modules for 20 bar (300 psi) and 350 bar (5000 psi) are used with supplied pumps.

The package has various extras to aid training applications and create an ergonomic workspace. These include on-bench storage with drawers, holders, perfo panel hooks, document holder, and shelves. Calibration accessories include an adaptors/fittings kit, and an instrumentation test stand with manifold, vice and transmitter bracket.

Features

Instrumentation test & trainer bench
Process calibrator/multimeter/PC module
Source/measure V, I , Ω, Hz, temperature
Regulated calibrator module vacuum to 7 bar
Digital gauge modules for 20 & 350 bar
Fixed & variable DC power supply modules
Control centre operation scope module
Pumps, UUT stand, dry block calibrator
Comprehensive pressure fittings/adaptors kit
Automated calibration using EasyCal software
Customisable pressure module ranges (pre-order)

Temperature and Process Calibration

Users can demonstrate how to calibrate process and temperature instrumentation. Both manual and automated testing can be performed, with EasyCal software and the 8070 dry block calibrator utilised with the 8060 process calibrator module. Calibrate various products including:

Sensors, transmitters, indicators, thermometers
RTDs, thermocouples, recorders, controllers, thermistors
Process calibrators, simulators, loop current devices

Pressure Calibration

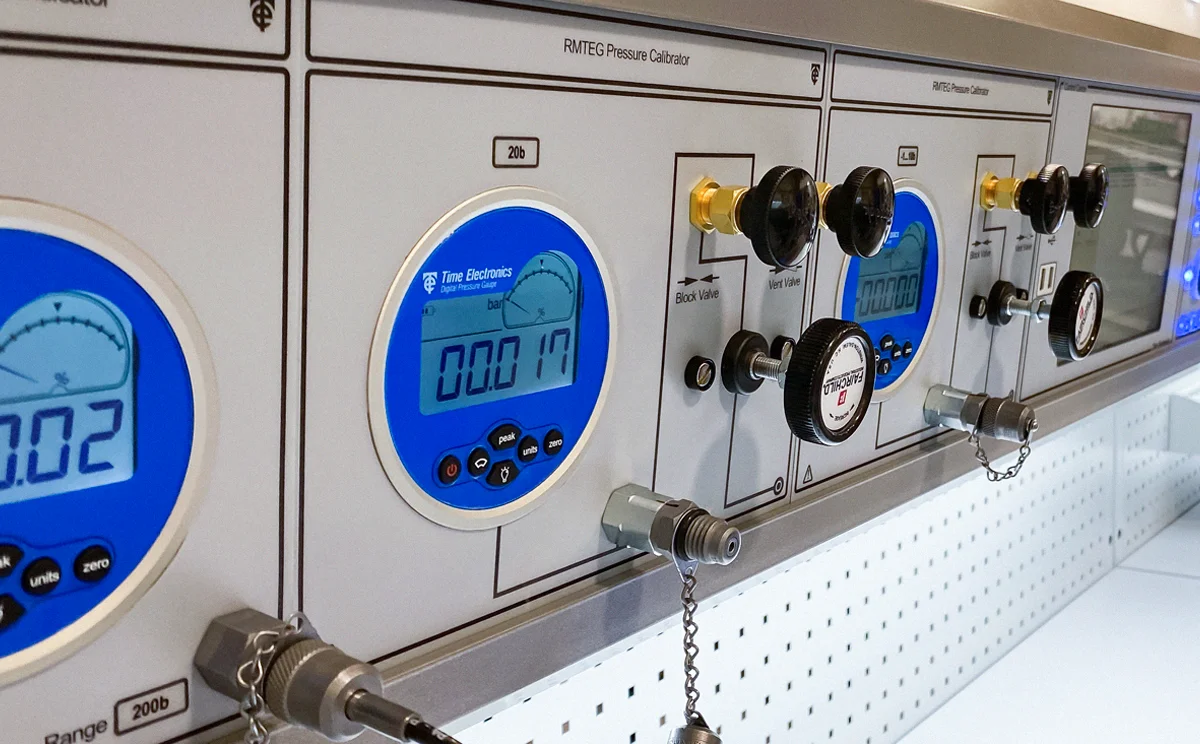

The CalBench features three pressure modules for calibration work. These include a regulated calibrator module covering vacuum to 7 bar (100 psi), utilised with line pressure. Two digital gauge modules for 20 bar (300 psi) and 350 bar (5000 psi) are used with the supplied pneumatic and hydraulic pumps. Calibrate pressure instrumentation such as:

Analogue and digital gauges, indicators, manometers
Calibrators, sensors, transducers, transmitters
Switches, valves, controllers, chart recorders

Turnkey Training Centres

The CBP-TRN1 is a system suitable for use in training centres and workshops. We can design and supply complete facilities featuring CalBenches for the technical education workload. Additional requirements for storage or specific applications can be included.

Complete facility design and supply service
Consultation on requirements, create drawings and documentation
Integrate CalBenches like the CBP-TRN1 as the teacher system
Multi-user CalBenches (CBP-TRN2) for students

EasyCal Calibration Software

The CBP-TRN1 comes with EasyCal software on the 8060 control centre. This enables software driven testing procedures to be demonstrated using compatible modules.

Produce calibration certificates and test reports. Show students the complete calibration process, help explain topics like traceability, document control and quality management.

Details

Bench Type and Fittings

Item	Qty	Code	Basic Description	Basic Purpose
1	1	7080-HD	CalBench Heavy Duty Version (W 2000 x D 850 x H 1568 mm) Framework bench style with worktop, perforated panel, primary console with 7082 mains power controller module.	Provides an ergonomic workspace for various applications. Modules are fitted to the primary console for the necessary workload.
2	1	7125	Perfo Panel Option: 20 piece Tool Hook Kit	For holding various tools and accessories.
3	1	7139	Perfo Panel Option: Shelf (W 450 x D 250 x H 130 mm)	Suitable for storing equipment and tools.
4	1	7143	Perfo Panel Option: Document Holder (W 450 x H 360 mm)	For placing instructions, user manuals, guides etc.
5	1	7132	5 Drawer Unit (W 525 x D 550 x H 600 mm)	For storage of equipment, tools, documents, etc.
6	3	7134	Slotted Divider Kit for inside of drawer units	Partitions the drawer units for parts and components.
7	1	7123	Under bench CPU/Dry Block Calibrator Holder	For storing a dry block calibrator when not in use.

Modules

Item	Qty	Code	Basic Description	Basic Purpose
8	1	8060+	Multifunction Process Calibrator and Control Centre Module Advanced system package for precision source and measure capabilities. Integral process calibrator, 6.5 digit multimeter, PC and EasyCal software. Operation via 12.1 ” touch screen display. Built-in communication with compatible modules.	Source and measure process signals for electrical, frequency, temperature. Enables users to calibrate process instrumentation like transmitters, RTDs, thermocouples and more. EasyCal software and accessories included for automation, administration and certificate generation.
9	1	CCPAD	Control Centre Numeric Keypad Module with jog dial	Provides an ergonomic method of using the control centre module without mouse or keyboard.
10	1	RMTEG-CV7b/0.02	Digital Pressure Gauge Module with Regulator Vacuum to 7 bar (100 psi), 0.02 % FS accuracy.	For pneumatic calibration work from vacuum to 7 bar (100 psi), commonly used with the 7149 electrical vacuum pump and external air supply (9 bar / 130 psi). Can be used manually with pump also.
11	1	MTEG-CV20b/0.02	Digital Pressure Gauge Module Vacuum to 20 bar (300 psi), 0.02 % FS accuracy.	For mid range pneumatic pressure calibration work, used with supplied benchtop pump.
12	1	MTEG-G350b/0.02	Digital Pressure Gauge Module 0 to 350 bar (5000 psi), 0.02 % FS accuracy.	For hydraulic calibration with accompanying 7195 benchtop pump.
13	1	1051B	Resistance Decade Box Module (0.01 Ω to 1 MΩ)	For testing work, Pt100 simulation for checking RTD transmitters.
14	1	CCSCOPE-2208B	Control Centre Integral Oscilloscope (2 channel) 100 MHz with connection module, control centre operation.	For basic R&M applications, fault finding and diagnostic work.
15	1	7056	Dual Adjustable DC Power Supply Module 2 x 30 V DC 3 A.	A variable DC supply to supplement various applications.
16	1	7087	Quad DC Power Supply Module 6 V (20 A), 12 V (10 A), 24 V (6 A), 48 V (3 A).	Provides a DC power supply to various instrumentation and devices under test.

Accompanying Products & Extras

Item	Qty	Code	Basic Description	Basic Purpose
17	1	7149	Electrical Vacuum Pump	Provides a vacuum for pressure modules.
18	1	7149-HCO	Housing & Connectivity Option for 7149 vacuum pump	Compact housing for the 7149 pump, situated under bench. Sound-proofed and power on/off via 7082 module on CalBench.
19	1	7161-VLP	Dual Port Benchtop Manifold with Vernier For Pneumatic use from vacuum to 40 bar (600 psi).	Compact pneumatic manifold that provides two output ports. Hand-tight connectors for pressure instrumentation under test.
20	1	7195	Benchtop Hydraulic Pressure Calibration Pump Vacuum to 700 bar (10,000 psi).	Used for hydraulic pressure calibration with measurement modules.
21	1	7192	Pneumatic Benchtop Pump Vacuum to 25 bar (350 psi).	Enables precise controlled input of pressure for pneumatic work. Suitable for use with MTEG measurement modules.
22	1	7198	Pressure Calibration Accessories Kit A comprehensive selection of fittings, adaptors and hoses.	Provides all the required pressure connections and fittings for modules and pumps to UUTs.
23	1	8100	Benchtop Instrumentation Test Stand	For fast and ergonomic positioning of UUTs like transmitters & gauges on the CalBench worktop.
24	1	8070	Dry Block Calibrator (-23 to 155 °C) With metric multi hole insert (1x3, 2x4, 1x5, 1x6, 1x9 mm), blank insert, EasyCal software driver pre-configured on control centre.	Temperature source for the calibration of probes, RTDs, and thermocouples. Manual control and EasyCal software compatible to automate calibration applications.
25	1	8070-METP	Pack of 11 Metric Inserts for 8070 3 mm to 13 mm holes	Inserts for use with different probe sizes, used with 8070.
26	1	CERTS	Traceable Calibration Certificates For all test modules and additional test equipment.	Certifies all measurement modules and additional instruments have been tested in the TE factory to international standards.
