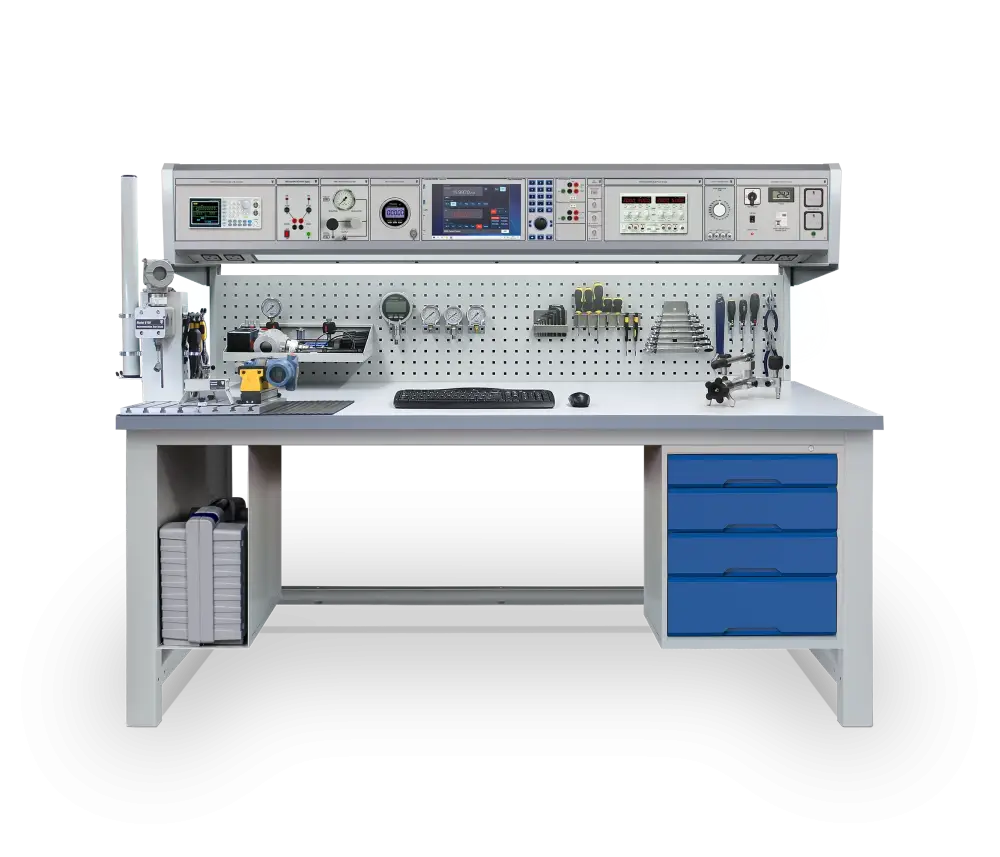

CBP-TRN3 Test & Trainer CalBench Package

The CBP-TRN3 CalBench is a multi-parameter workstation for pressure, process, and temperature instrumentation calibration training. It features a selection of easy to use modules and extras for practicing instrumentation setup, connections and testing. Educate trainees on applications relating to commissioning, calibration and maintenance of the typical devices used for measurement in industrial systems.

The 8060 module situates centrally in the console, providing source, simulation and measurement of process signals, HART communication and 24 V loop power. It features a PC control centre with 12.1" touch screen display, running the calibrator control application. EasyCal software is available as an option, to enable automated calibration and test management.

For pressure, a simple operation regulated pneumatic module with analogue gauge is used for 0 to 5 bar (70 psi) controlled output. Then a precision digital gauge module is used with the supplied pneumatic pump for vacuum to 20 bar (300 psi) coverage. Additional modules include a control centre operated oscilloscope, function generator with frequency counter, Pt100 simulator and DC power supplies.

The package has various extras to aid training applications and create an ergonomic workspace. These include on-bench storage with drawers, holders, perfo panel hooks, document holder, and shelves. Calibration accessories include an adaptors/fittings kit, and an instrumentation test stand with manifold, vice and transmitter bracket.

Features

Basic test & trainer CalBench package
Process calibrator/control centre
Source/measure V, I , Ω, Hz, temperature
Regulated analogue gauge module 0 to 5 bar
Digital gauge module for 20 bar
Fixed & variable DC power supply modules
Control centre operation scope module
Function generator module with counter
Configurable instrumentation test stand
Benchtop pneumatic pump for vacuum to 25 bar (350 psi)
Comprehensive pressure fittings/adaptors kit
Automate calibration using EasyCal software (optional)

Process and Temperature Calibration

The CBP-TRN3 package features the 8060 process calibrator module for test and calibration of various process instrumentation. With a simple operation touch screen interface, users can source and measure mV, mA, ohms, frequency, and pulses. Simulate and measure thermocouples and RTDs. Calibrate various products including:

Sensors, indicators, thermometers, recorders
RTD & thermocouple transmitters, controllers
Process calibrators, loop current devices
Add a dry block calibrator for temperature sourcing

Pressure Calibration

The CBP-TRN3 CalBench features 2 pressure modules for calibration work. These include a regulated module with analogue gauge for controlled output to 5 bar (70 psi). Then a precision digital gauge module measures vacuum to 20 bar (300 psi), used with the supplied pneumatic pump. Test and train on pressure instrumentation such as:

Analogue and digital gauges, indicators, manometers
Calibrators, sensors, transducers, transmitters
Switches, valves, controllers, chart recorders

Turnkey Training Centres

The CBP-TRN3 is a system suitable for use in training centres and workshops. We can design and supply complete facilities featuring CalBenches for the technical education workload. Additional requirements for storage or specific applications can be included.

Complete facility design and supply service
Consultation on requirements, create drawings and documentation
Integrate CalBenches like the CBP-TRN3 as the teacher system
Multi-user CalBenches (CBP-TRN2) for students

Details

Bench Type and Fittings

Item	Qty	Code	Basic Description	Basic Purpose
1	1	7080-HD	CalBench Heavy Duty Version (W 2000 x D 850 x H 1568 mm) Framework bench style with worktop, perforated panel, primary console with 7082 mains power controller module.	Provides an ergonomic workspace for various applications. Modules are fitted to the primary console for the necessary workload.
2	1	7125	Perfo Panel Option: 20 piece Tool Hook Kit	For holding various tools and accessories.
3	1	7139	Perfo Panel Option: Shelf (W 450 x D 250 x H 130 mm)	Suitable for storing equipment and tools.
4	1	7143	Perfo Panel Option: Document Holder (W 450 x H 360 mm)	For placing instructions, user manuals, guides etc.
5	1	7124	4 Drawer Unit (W 525 x D 550 x H 600 mm)	For storage of equipment, tools, documents etc.
6	3	7134	Slotted Divider Kit for inside of drawer units	Partitions the drawer units for parts and components.
7	1	7123	Under Worktop Holder	For storing the 7198 adaptors/fittings kit when not in use.

Modules

Item	Qty	Code	Basic Description	Basic Purpose
8	1	8060	Multifunction Process Calibrator and Control Centre Module Integral process calibrator with source & measure, PC with 12.1 ” touch screen interface. Built-in communication with compatible modules.	Source and measure process signals for electrical, frequency, temperature. Enables users to calibrate process instrumentation like transmitters, RTDs, thermocouples and more.
9	1	CCPAD	Control Centre Numeric Keypad Module with jog dial	Provides an ergonomic method of using the control centre module without mouse or keyboard.
10	1	MTEG-CV20b/0.02	Digital Pressure Gauge Module Vacuum to 20 bar (300 psi), 0.02 % FS accuracy.	For mid range pneumatic pressure calibration work, used with supplied benchtop pump.
11	1	7084/7102	Analogue Pressure Gauge Module with Regulator 0 to 5 bar (70 psi).	For pneumatic output up to 5 bar (70 psi), input from an external air supply, ie shop air (7 bar / 100 psi).
12	1	CCSCOPE-2206B	Control Centre Integral Oscilloscope (2 channel) 50 MHz with connection module, control centre operation.	For basic R&M applications, fault finding and diagnostic work.
13	1	7001	Pt100 Simulator Module (-200 to +800 °C)	Simple operation simulator module for Pt100 resistance thermometers.
14	1	8023	10 MHz Function Generator Module with Frequency Counter DDS function generator with sweep and 120 MHz counter.	Used to generate different types of electrical waveforms over the frequency range, and frequency measurement for fault diagnostics and repair work.
15	1	7056	Dual Adjustable DC Power Supply Module 2 x 30 V DC 3 A.	A variable DC supply to supplement various applications.
19	1	7083	Dual 24 V Fixed DC Power Supply Module	For powering loop instrumentation, transmitters and other equipment requiring 24 V DC.

Accompanying Products & Extras

Item	Qty	Code	Basic Description	Basic Purpose
17	1	7192	Pneumatic Benchtop Pump Vacuum to 25 bar (350 psi).	Enables precise controlled input of pressure for pneumatic work. Suitable for use with MTEG measurement modules.
18	1	7198	Pressure Calibration Accessories Kit A comprehensive selection of fittings, adaptors and hoses.	Provides all the required pressure connections and fittings for modules and pumps to UUTs.
19	1	8100	Benchtop Instrumentation Test Stand	For fast and ergonomic positioning of UUTs like transmitters & gauges on the CalBench worktop.
20	1	CERTS	Traceable Calibration Certificates For all test modules and additional test equipment.	Certifies all measurement modules and additional instruments have been tested in the TE factory to international standards.
