Fixed and variable DC supplies for on-bench power & testing work

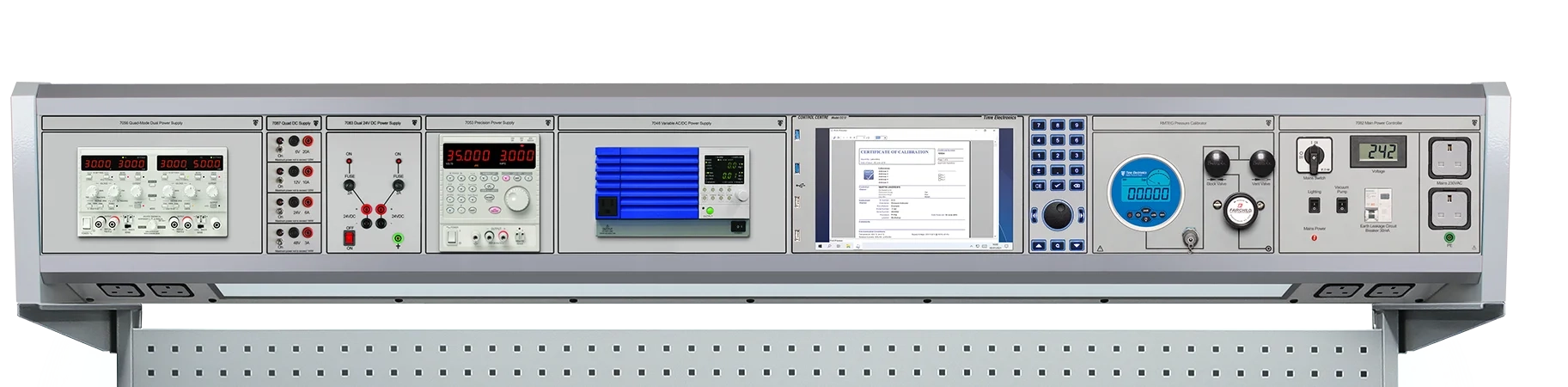

A selection of DC power supply modules are available for the CalBench system. Fixed DC power supplies include 24 V modules for loop powered devices being tested on the bench. Variable DC power supplies provide an adjustable output for supplementing power to applications or general purpose use in troubleshooting and diagnostics.

The selection of DC power supplies range from basic fixed outputs to advanced adjustable modules with multiple features, modes and functions. The variable power supplies are versatile solutions with several types to choose from. These include high accuracy, multi-range modules, dual output versions, high power, and programmable DC supplies.

7083 Dual 24 V Fixed DC Power Supply
2 x 24V (2A) floating supplies

4mm shrouded output sockets

Power loop instrumentation

Voltage overload protection

Current overload protection

Ripple: Typically 240mV

Regulation: Typically 2%
View Data Sheet
7087 Quad Fixed DC Power Supply
4 independent floating supplies

6 V/20 A, 12 V/10 A, 24 V/6 A, 48 V/3 A

4 mm shrouded output sockets

Power for loop instrumentation

Voltage & current overload protection

Series connection available

Ripple & Noise: 50mV or 1% pk-pk
View Data Sheet
8083 Quad 24 V DC Power Supply
4 fixed independent floating supplies

2 x 24 V (6 A), 2 x 24 V with 250 Ω resistor

4 mm shrouded output sockets

Suitable for powering loop instrumentation

Suitable for powering HART devices

Current overload protection

Voltage overload protection
View Data Sheet
7075D Fixed DC Power Supply
96V - 144 V preset fixed output

Output Current 7.5 A max (to 800 W)

4mm shrouded output sockets

Line regulation: ± 0.1 %

Load regulation: ± 0.5 %

Output accuracy: ± 1.5 % of reading

Output ripple (> 50Hz): < 50mV rms
View Data Sheet
7052 Adjustable DC Power Supply
0 to 30 V, 0.1 mA to 3 A (90 W max)

High accuracy 4 digit meters

Fixed resolution for consistency

Instant setting lock function

Customise voltage range function

Linear regulation - low noise

Programmable version - 7052P
View Data Sheet
7056 Dual Adjustable DC Power Supply
Dual outputs: 0 to 30 V, 0.1 mA to 3 A

Single output: 0 to 30 V, 0.2 mA to 6 A

Dual: 90 W max / Single: 180 W max

High accuracy 4 digit meters

Fixed resolution for consistency

Tracking and Parallel modes

Programmable version - 7056P
View Data Sheet
7057 Adjustable DC Power Supply
0 to 60 V, 0.1 mA to 1.5 A (90 W max)

High accuracy four digit meters

Low current range, 0.1 mA meter resolution

S-Lock function - instantly lock settings

V-Span function - customise voltage range

Independent, isolated tracking, ratio tracking

DC output switches and “view limits” button
View Data Sheet
7053 Precision Variable DC Power Supply
Single output with 3 ranges

56 V/2 A, 25 V/4 A, 56 V/500 mA

1 mV setting resolution on o/p V

1 mV resolution at up to 56 volts

112 W maximum output power

Direct numeric entry or spin wheel

Programmable version - 7053P
View Data Sheet
7054-7055 HV Variable DC Power Supplies
7054: 0 to 120 V / 0.01 mA to 750 mA

7055: 0 to 250 V / 0.01 mA to 375 mA

7054: 90 W max, 7055: 94 W max

High accuracy 4 digit meters

Fixed resolution for consistency

Customise voltage range function

Programmable versions available
View Data Sheet
8052 High Power Variable DC Power Supply
0 to 35 V, 0 to 10 A (350 W maximum)

CV & CI operation with automatic crossover

Low noise, excellent transient response

Comprehensive protection, variable OVP trip

High setting resolution

High accuracy digital meters

Coarse and fine voltage controls
View Data Sheet
M-PSW Multi Range DC Power Supplies
15 available DC supply modules

30 V / 80 V / 160 V / 250 V/ 800 V

360 W / 720 W / 1080 W

Constant power output

C.V / C.C priority

Adjustable slew rate

High efficiency & high power density
View Data Sheet
7046-7047 Variable AC/DC Power Supplies
7046: AC 500 VA, DC 400 W

7047: AC 1000 VA, DC 800 W

1 to 270 V AC output

Output ACI: 7046 = 5 A, 7047 = 10 A

1.4 to ± 380 V DC output

Output DCI: 7046 = 4 A, 7047 = 8 A

Frequency 40 to 500 Hz
View Data Sheet
